SpeechMike LFH3200 hand handeld noise cancellation microphone

  • Overview
  • Features
  • Technical Specifications

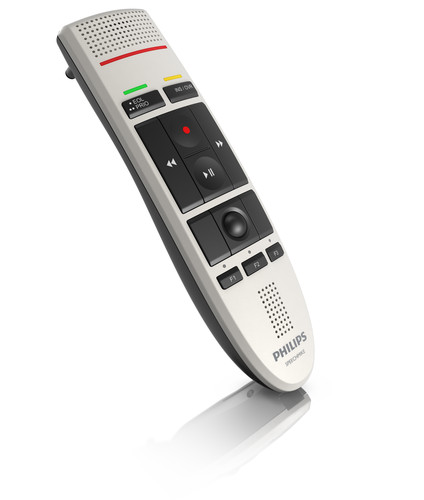

lfh3200 p3d 02-1Boost your productivity with a professional dictation solution The professional SpeechMike USB microphone takes stationary dictation to a new level. It delivers excellent speech recognition capabilities, an antimicrobial surface for improved hygiene, and refined ergonomics for easy operation.

Highlights

Superior audio quality

  • Noise-canceling microphone for accurate speech recognition results
  • Integrated sound card and speaker ensuring crystal clear playback

Enhance your productivity

  • Comfortable ergonomic design for one-thumb operation
  • Antimicrobial surface for active bacteria reduction and improved hygiene
  • Attach client or patient data to a recording simply by scanning a barcode

Designed for professionals

  • Available with Philips SpeechExec professional dictation software
  • Geared for Dragon NaturallySpeaking speech recognition software
  • Can be fully integrated into existing workflow systems

Features

  • Noise-canceling microphone for accurate speech recognition results
  • Integrated sound card and speaker ensuring crystal clear playback
  • Comfortable ergonomic design for one-thumb operation
  • Antimicrobial surface for active bacteria reduction and improved hygiene
  • Attach client or patient data to a recording simply by scanning a barcode
  • Available with Philips SpeechExec professional dictation software
  • Geared for Dragon NaturallySpeaking speech recognition software
  • Can be fully integrated into existing workflow systems

Connectivity

  • USB: High-speed USB 2.0

Audio recording

  • Microphone type: electret condenser microphone
  • Microphone capsule: 10 mm
  • Characteristic: uni-directional
  • Frequency response: 200–10 000 Hz
  • Sensitivity: 85 dB–104 dB (depending on position of mic-slider in sound control panel)
  • Signal-to-noise ratio: > 70 dBA

Sound

  • Speaker type: built-in round, dynamic speaker
  • Speaker diameter: 30 mm
  • Acoustic frequency response: 300–7500 Hz
  • Speaker output power: > 200 mW

Barcode scanner (LFH3300/3010)

  • Compatible bar codes: EAN, UPC, Code 11/39/93/128, Codabar, MSI Code, RSS, Interleaved 2 of 5, Discrete 2 of 5
  • Laser class: class 1 laser product

System requirements

  • Processor: Pentium IV 1 GHz recommended
  • RAM memory: 1 GB (2 GB recommended)
  • Hard disk space: 100 MB for SpeechExec, 850 MB for Microsoft .NET 4, 30 MB for Speech Control. 250 MB for Microsoft .NET 2.0
  • Operating system: Windows 8/7/Vista (32/64 bit), Mac OS X 10.8/10.7
  • Free USB port
  • DVD-ROM drive
  • Graphics card: DirectX-compliant graphics card with hardware acceleration recommended
  • Sound device: Windows-compatible sound device

Green specifications

  • Compliant to 2002/95/EC (RoHS)
  • Lead-free soldered product

Operation conditions

  • Temperature: 5 °–45 °C/41 °–113 °F
  • Humidity: 10 %–90 %

Dimensions

  • Product dimensions (W × D × H): 45 mm × 165 mm × 30 mm/1.8" × 6.5" × 1.2"
  • Weight: 0.160 kg/0.353 lb
  • Cable length: 3 m/10 ft

Design and finishing

  • Material: antimicrobial housing
  • Color(s): warm grey/black

Package contents

  • SpeechMike USB dictation microphone
  • Quick start guide
