DVT6010

DVT6010

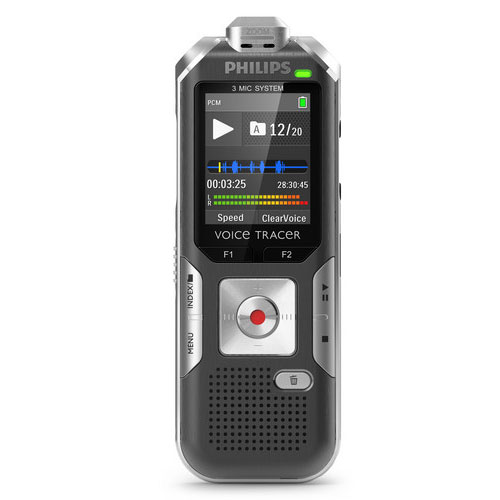

Voice Tracer digital recorder Lecture and interview recording DVT6010

Superior Distance Recording

with 3Mic AutoZoom+
Capture lectures and interviews in outstanding sound quality. The 3Mic AutoZoom+ technology suppresses surrounding noises for crisp and clear recordings. A motion sensor automatically selects the right microphone for each situation.

datasheet DATASHEET


  • DESCRIPTION
  • SPECIFICATIONS
  • SUPPORT

Technical Specifications

Connectivity

Headphones: 3.5 mm / 1.4 inches

Microphone: 3.5 mm / 1.4 inches

Micro-SD card socket

USB: High-speed USB 2.0

Wi-Fi: IEEE 802.11 a/b/g/n

Bluetooth: 4.0

Display

Type: IPS with 16 million colors

Screen type: scratch resistant Gorilla glass touch screen

Diagonal screen size: 10.16 cm / 4 inches

Resolution: 480 × 800 pixels



Audio

Recording format: AMR, ACC

Playback format: MPEG (MP1, MP2, MP3), WMA, WAV, APE, OGG (OGG, OGA), FLAC, AAC (AAC, M4A)






Speaker type: built-in rectangular dynamic speaker

Dimensions front speaker: 6 × 12 mm / 0.2 × 0.5 inches

Dimensions rear speaker: 11 × 15 mm / 0.4 × 0.6 inches

Microphones

Directional microphone: for speech recognition

360° microphone: for meetings and dictation

MEMS microphone: for VoIP telephony

Philips dictation recorder app

Recording modes: DSS Pro (DS2/mono), PCM Voice (WAV/mono)

Bit rate: 28 kbit/s (DSS Pro), 256 kbit/s (PCM Voice)

Edit modes: insert, overwrite, append

Recording time: 1073 hours (DS2), 117 hours (WAV)

Sample rate: 16 kHz / 16 bit

Supported barcodes: Code 39, Code 93, Codabar, Code128, Code 25, Code 11, MSI-Plessey, EAN, UPC, QR code, Data Matrix

Camera

Resolution: 5 Megapixels

Autofocus

Flash

Image formats (supported by operating system): JPG, JPEG, BMP, GIF, PNG

Video recording formats (supported by operating system): H.264 / AVC (MOV, 3GP) up to 1920 × 1088 pixels (30fps)

Video playback formats (supported by operating system)

Power

Battery type: built-in rechargeable Li-ion battery

Battery capacity: 2700 mAh

Battery lifetime: up to 12 hours of recording (DSS QP mode)

Standby time: up to 97 hours

Charging time (full charge): approx. 3 hours





Docking Station

Product dimensions (W × D × H): 82 × 77 × 56 mm / 3.2 × 3.0 × 2.2 inches

Weight: 264 g / 9.3 oz

LAN connection

Kensington lock

Removable magnetic inlay for use with case

Green specifications

Compliant to 2011/65/EU (RoHS)

Operation conditions

Temperature: -5° – 45° C / 23° – 113° F

Humidity: 10 % – 90 %, noncondensing

Security

Real-time file encryption

Encryption standard (Philips dictation recorder app): Advanced Encryption Standard (AES) 256 bits

Device lock with PIN code or password

Configurable security settings with Software Development Kit (SDK) or configuration software

Lockable settings

Package contents

SpeechAir Smart Voice Recorder

Docking Station

In-ear headphones

2 USB cables

Power supply with international adapters: US, UK, Europe, Asia Pacific

USB stick containing user manual

SpeechExec Pro Dictate Dictation Software (PSP1200)

SpeechExec Pro Dictation and Speech Recognition Software (PSE1200)

Philips SpeechAir Management Software

Quick start guide

Product dimensions

Product dimensions (W × D × H): 62 × 127 × 15 mm / 2.4 × 5.0 × 0.6 inches

Weight: 160 g / 5.6 oz



Technical Specifications

Connectivity

Headphones: 3.5 mm

Microphone: 3.5 mm, Built-in microphone, Microphone stereo socket

Micro-SD card socket

USB: High-speed USB 2.0

Display

Built-in microphone: 3 MIC System, high-sensitivity, HQ Stereo, low-noise microphone

Recording formats: MPEG1 layer 3 (MP3), PCM (WAV)

Recording modes: PCM 1411 kbps, SHQ 192 kbps, HQ 96 kbps, SP 64 kbps, LP 8 kbps

Sample rate: 44,1 kHz (PCM/SHQ), 32 kHz (HQ), 22 kHz (SP), 16 kHz (LP)

Bit rate: 8, 64, 96, 192, 1411 kbps

File overwrite and append mode

Record monitor function

Recording time: 1140 h (LP), 142 h (SP), 95 h (HQ), 47 h (SHQ), 6 h (PCM)

Silent recording mode

Prerecording mode

Sound

Sound enhancement: ClearVoice

Frequency response: 50–20,000 Hz






Signal-to-noise ratio: > 60 dB

Speaker output power: 110 mW

Speaker diameter: 28 mm

Storage media

Built-in memory capacity: 8 GB

Built-in memory type: NAND Flash

Mass storage class compliant

Tuner

Frequency range: 87.5–108 MHz

Station presets: 20

Auto digital tuning

Tuner bands: FM stereo

Music playback

Compression format: MP3, WMA

Equalizer settings: Jazz, Pop, Classic

ID3 tag support

MP3 bit rates: 8–320 kbps

WMA bit rates: 48–320 kbps (44 kHz), 64–192 (48 kHz), stereo

Convenience

Firmware upgradeable

Keypad lock

Multi language: English, French, German, Spanish, Italian, Russian, Polish, Simplified Chinese

Variable playback speed

Voice volume indicator





Voice-activated recording

AutoAdjust+ recording

AutoZoom+ recording: 15 m zoom

Calendar search

Instant one-touch recording

Optimized for notes, conversations, lectures and interviews

Power

Li-polymer built-in battery

Battery lifetime: up to 50/25 hours in LP record mode (built-in memory / microSD memory card)

System requirements

Free USB port

Operating system: Windows 8/7/Vista, Mac OS X, Linux

Design and finishing

Colour(s): Silver shadow/anthracite

Green specifications

Lead-free soldered product

Package contents

Recorder

Stereo headphones

USB cable

Quick start guide

Product dimensions

Product dimensions (W × H × D): 4.5 × 12.5 × 1.8 cm / 1.75 × 4.9 × 0.71 inch

Weight: 84 g/2.96 oz.

EAN: 91 20056 50051 2



Manuals and documentation

pdf Leaflet (1 MB)
pdf User manual (884 KB)
pdf Product brochure (1.7 MB)
