DVT8000 Meeting Recording

  • Overview
  • Features
  • Technical Specifications

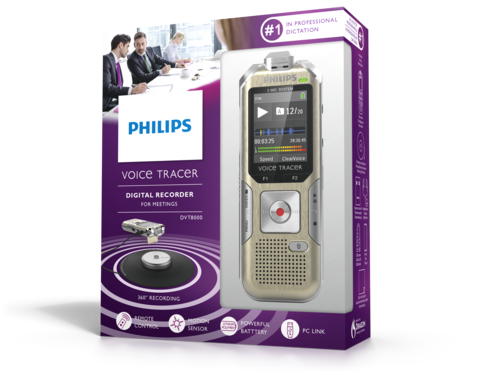

dvt8000 pfi-1360° meeting recording with a light, portable and easy-to-use solution Capture every meeting in excellent, noise-free audio quality. Simply place the 360° meeting microphone on the table, press record on the remote control and capture all speakers, from every angle.

Highlights

Superior audio quality

  • 360° recording for perfectly documented meetings
  • Motion sensor for automatic microphone sensitivity adjustment
  • Pre-recording function for never missing a single word
  • MP3 recording for clear playback and easy file sharing

Easy and intuitive

  • Large color display for easy and intuitive operation
  • Wireless remote control included for convenient recording
  • Rechargeable li-polymer battery for extra-long recording
  • Plug and play in Windows, Mac OS and Linux

Designed around you

  • 4 GB internal memory for up to 44 days of recording
  • MicroSD memory card slot for virtually unlimited recording
  • Robust metal design for extra durability
  • Convenient wire storage for adjusting cable length

Features

360° recording for perfectly documented meetings

Motion sensor for automatic microphone sensitivity adjustment

Pre-recording function for never missing a single word

MP3 recording for clear playback and easy file sharing

Large color display for easy and intuitive operation

Wireless remote control included for convenient recording

Rechargeable li-polymer battery for extra-long recording

Plug and play in Windows, Mac OS and Linux

4 GB internal memory for up to 44 days of recording

MicroSD memory card slot for virtually unlimited recording

Robust metal design for extra durability

Convenient wire storage for adjusting cable length

Connectivity

  • Headphones: 3.5 mm
  • Microphone: 3.5 mm, Built-in microphone, Microphone stereo socket
  • Micro-SD card socket
  • USB: High-speed USB 2.0

Display

  • Type: LCD color display
  • Backlight
  • Diagonal screen size: 1.77"/4.5 cm
  • Resolution: 128 × 160 pixels

Audio recording

  • Built-in microphone: 3 Mic System, high-sensitivity, HQ Stereo, low-noise microphone
  • Recording formats: MPEG1 layer 3 (MP3), PCM (WAV)
  • Recording modes: PCM 1411 kbps, SHQ 192 kbps, HQ 96 kbps, SP 64 kbps, LP 8 kbps
  • Sample rate: 44,1 kHz (PCM/SHQ), 32 kHz (HQ), 22 kHz (SP), 16 kHz (LP)
  • Bit rate: 8, 64, 96, 192, 1411 kbps
  • File overwrite and append mode
  • Record monitor function
  • Recording time: 1140 h (LP), 142 h (SP), 95 h (HQ), 47 h (SHQ), 6 h (PCM)
  • Silent recording mode
  • Prerecording mode

Sound

  • Sound enhancement: ClearVoice
  • Frequency response: 50–20,000 Hz
  • Signal-to-noise ratio: > 60 dB
  • Speaker output power: 110 mW
  • Speaker diameter: 28 mm

Storage media

  • Built-in memory capacity: 4 GB
  • Built-in memory type: NAND Flash
  • Mass storage class compliant

Tuner

  • Frequency range: 87.5–108 MHz
  • Station presets: 20
  • Auto digital tuning
  • Tuner bands: FM stereo

Music playback

  • Compression format: MP3, WMA
  • Equalizer settings: Jazz, Pop, Classic
  • ID3 tag support
  • MP3 bit rates: 8–320 kbps
  • WMA bit rates: 48–320 kbps (44 kHz), 64–192 (48 kHz), stereo

Meeting microphone

  • Cable length: 2 m/6.5 ft.
  • Connector: 3.5 mm
  • Design: boundary layer microphone
  • Frequency response: 30–18,000 Hz
  • Impedance: approx. 2.2 kOhm @ 1 kHz
  • Net weight: 108 g/3.8 oz.
  • Phantom supply voltage: 1.5 to 5 V/0.5 mA
  • Product dimensions (W × D × H): 13 × 13 × 1.8 cm/5.1 × 5.1 × 0.7 inch
  • Sensitivity: -38 dBV
  • Type: electret condenser microphone

Convenience

  • Firmware upgradeable
  • Keypad lock
  • Multi language: English, French, German, Spanish, Italian, Russian, Polish, Simplified Chinese
  • Variable playback speed
  • Voice volume indicator
  • Voice-activated recording
  • AutoAdjust+ recording
  • AutoZoom+ recording: 15 m zoom
  • Calendar search
  • Instant one-touch recording
  • Optimized for notes, conversations, lectures and interviews, meetings

Power

  • Li-polymer built-in battery
  • Battery lifetime: up to 50/25 hours in LP record mode (built-in memory / microSD memory card)

System requirements

  • Free USB port
  • Operating system: Windows 8/7/Vista, Mac OS X, Linux

Design and finishing

  • Colour(s): Champagne/silver shadow

Green specifications

  • Lead-free soldered product

Package contents

  • Recorder
  • Meeting microphone
  • Stereo headphones
  • Wireless remote control
  • Carry case
  • USB cable
  • Quick start guide

Product dimensions

  • Product dimensions (W × H × D): 4.5 × 12.5 × 1.8 cm / 1.75 × 4.9 × 0.71 inch
  • Weight: 85 g / 3.0 oz.
  • EAN: 91 20056 50055 0
